Navigating Inaccessible Pipelines.
Pinpointing Defects Precisely.
| Why Endobot
Sharp Imaging
Visual inspections happen in more detail with the help of HD cameras.
Gradient Measurement & Laser Profiling
Measures pipeline inclinations through in-built IMU. Comes with optional Laser Profiling sensor.
For Tough Conditions
Built to endure harsh confines, with different wheel options for multiple terrains.
Access For Multiple Diameters
Suited for pipeline diameters between 70mm to 2100mm.
Asia’s first pipeline crawler that can access sub-90mm pipelines
Equipped with IMU sensors
for precise motion tracking.
Suitable for pipelines
ranging from ⏀90 mm to ⏀200 mm.
Laser profiling for accurate
pipeline measurements.
HD cameras for detailed
visual inspections.
Key Features
Pipeline size
⏀90 mm to ⏀200 mm
Max. tether length
120 Meter
Camera
2MP Pan, Tilt, Zoom Camera
Wheel
Two sets ⏀ 66 mm and ⏀104 mm
Depth Rating
30 Meters
Use Case
Water Pipeline

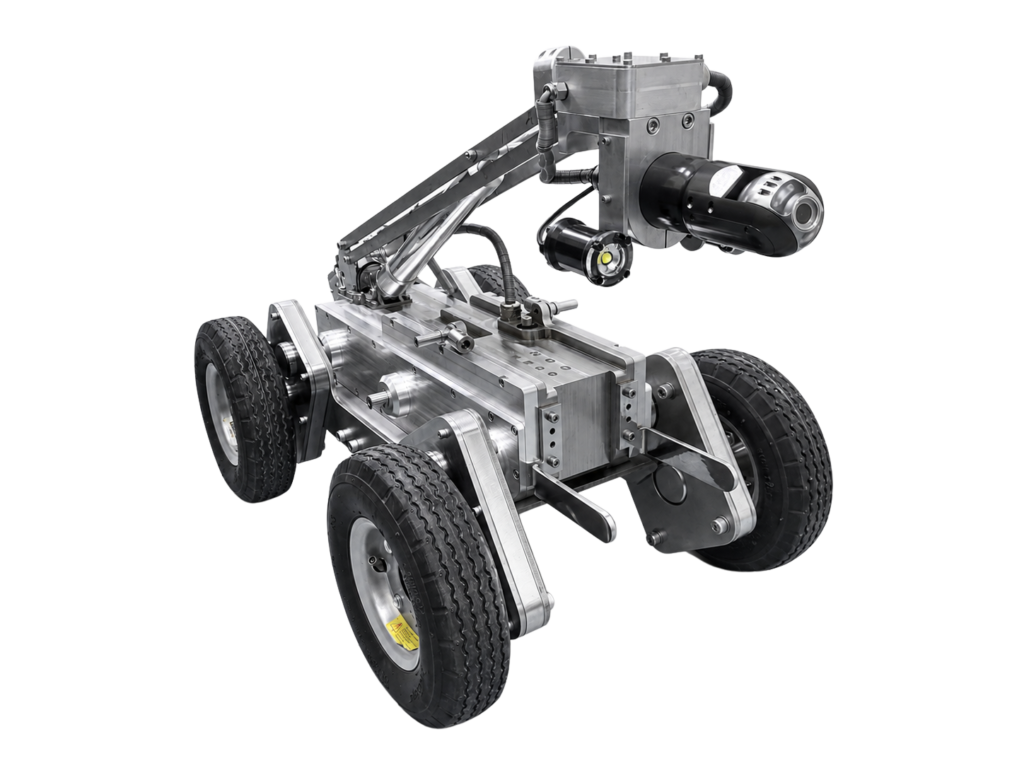

Equipped with pantograph camera to fully cover large sewers and water pipelines
Equipped with IMU sensors
for precise motion tracking.
Suitable for pipelines
ranging from ⌀250mm to ⌀1000 mm.
Laser profiling for accurate
pipeline measurements.
HD cameras for detailed
visual inspections.
Key Features
Pipeline size
250mm to 1000mm
Max. tether length
250-300m
Camera
Pan, Tilt, Zoom, Pantograph camera with 720p resolution
Wheel
Three sets 140mm, ø150mm & 220mm
Depth Rating
30m (IP69)
Use Case
Water and Sewer Pipelines, Stormwater Drains
Engineered to navigate the harsh interiors of stormwater drains and sewers
Equipped with IMU sensors
for precise motion tracking.
Suitable for pipelines
ranging from ⏀600-1200 mm.
Laser profiling for accurate
pipeline measurements.
HD cameras for detailed
visual inspections.
Key Features
Pipeline size
⏀600-1200 mm
Max. tether length
500 meter
Camera
Pan, Tilt, Zoom, Pantograph camera with 720p resolution
Wheel
Endobot Track Drive system with ⏀140 mm sprocket,⏀86 mm driving diameter
Depth Rating
3 Meters(IP 69)
Use Case
Sewer and Stormwater drains
(can be used in a maximum of 150mm depth sludge)
Innovative floating robot that combines buoyancy control with high-precision visual assessment
Equipped with IMU sensors
for precise motion tracking.
Suitable for pipelines
ranging from ⌀600-1500mm.
Laser profiling for accurate
pipeline measurements.
HD cameras for detailed
visual inspections.
Key Features
Pipeline size
⌀600-1500mm
Max. tether length
100-200m
Camera
Pan, Tilt, Zoom, Pantograph camera with 720p resolution
Depth Rating
30m (IP68)
Use Case
Sewer Pipeline
Endobot App
Digitization and scope are not always synonymous. That’s why we have the Endobot App, for inspection and maintenance projects that are limited in terms of scale. As a leaner package that comes equipped with inspection and instant-report-generation capabilities, the Endobot App lets you harness the full power of pipeline digitization without overshooting your project requirements.

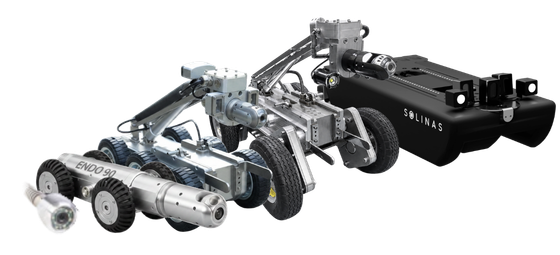

Core Innovations for Smarter Infrastructure
Endobot, a series of advanced crawlers, inspects water, sewer, and stormwater pipelines, offering predictive maintenance insights.
- Pipeline size: ⏀90 mm to ⏀200 mm
- Max. tether length:120 Meter
- Camera:2MP Pan, Tilt, Zoom Camera
- Wheel:Two sets ⏀ 66 mm and ⏀104 mm
- Depth Rating:30 Meters
- Use Case:Water Pipeline
Endobot, a series of advanced crawlers, inspects water, sewer, and stormwater pipelines, offering predictive maintenance insights.
- Pipeline size:⏀250mm to 1000mm
- Max. tether length:250-300m
- Camera:Pan, Tilt, Zoom, Pantograph camera with 720p resolution
- Wheel:Three sets ⏀140mm, ⏀150mm & 220mm
- Depth Rating:30m (IP69)
- Use Case:Water and Sewer Pipelines, Stormwater Drains
Endobot, a series of advanced crawlers, inspects water, sewer, and stormwater pipelines, offering predictive maintenance insights.
- Pipeline size: ⏀600-1200 mm
- Max. tether length:500 meter
- Camera:Pan, Tilt, Zoom, Pantograph camera with 720p resolution
- Wheel:Endobot Track Drive system with ⏀140 mm sprocket,⏀86 mm driving diameter.
- Depth Rating:3 Meters(IP 69)
- Use Case:Sewer and Stormwater drains (can be used in a maximum of 150mm depth sludge)
Endobot, a series of advanced crawlers, inspects water, sewer, and stormwater pipelines, offering predictive maintenance insights.
- Pipeline size:⏀600-1500mm
- Max. tether length:100-200m
- Camera:Pan, Tilt, Zoom, Pantograph camera with 720p resolution
- Wheel:30 Meters(IP 68)
- Depth Rating:Sewer Pipeline
Key Features
Endobot simplifies pipeline maintenance, offering a smarter, more efficient approach. Experience the future of infrastructure management with technology that works seamlessly in the background to keep your operations running smoothly.
Endobot®, Used By Government of India
As A Standard For Robotic Inspection
| Endobot in action
Endobot®, Used By Government of India
As A Standard For Robotic Inspection
| Endobot in Action
| Pipeline Defects
Voices That Matter
G Sreekanth
Municipal Commissioner
Chhatrapathi Sambhaji-Nagar
Kushal Atkare
Execution Head
Veolia
Shubham Gupta
Municipal Commissioner
Sangli-Miraj-Kupwad
| Industries We Serve
Municipal Corporations
Manufacturing
Automotives
Real Estate
Pharmaceuticals
Oil & Gas
Mining & Minerals
Food & Beverage
Chemical Processing
Construction
Petrochemicals
Steel & Iron
Special Economic Zone (SEZ)
Airports
State Infrastructure
| Our Clients
Frequently Asked Questions
What is a pipeline inspection robot?
A pipeline inspection robot is a remotely operated robotic crawler designed to inspect underground water pipelines, sewer networks, and stormwater drains. It captures high-definition visual data and identifies defects such as cracks, blockages, leakages, corrosion, contamination, and structural damage without extensive excavation.
How does ENDOBOT inspect underground pipelines?
ENDOBOT navigates inside pipelines using specialized crawler systems and HD cameras. It provides real-time video feeds, measures pipeline gradients using IMU sensors, and can optionally perform laser profiling for detailed condition assessment.
What types of defects can ENDOBOT detect?
ENDOBOT can detect:
- Cracks and fractures
- Leakages
- Blockages
- Root intrusion
- Corrosion and scaling
- Joint displacement
- Illegal connections
- Sediment build-up
- Structural defects
- Water contamination points
Which pipeline sizes can ENDOBOT inspect?
ENDOBOT solutions can inspect pipeline diameters ranging from approximately 90 mm to 2100 mm, depending on the robot model selected.
Can ENDOBOT inspect water pipelines without disrupting supply?
Yes. ENDOBOT is designed for non-destructive pipeline inspection and can help utilities identify leaks, contamination points, blockages, and structural defects while minimizing service disruptions.
Is robotic pipeline inspection better than manual inspection?
Robotic inspection improves safety, accuracy, and efficiency by eliminating the need for human entry into confined spaces. It also provides digital inspection records, precise defect localization, and data-driven maintenance planning.
What industries can use ENDOBOT?
ENDOBOT is suitable for:
- Municipal Corporations
- Water Utilities
- Manufacturing Facilities
- Real Estate Projects
- Oil & Gas Plants
- Airports
- Pharmaceutical Industries
- Food & Beverage Facilities
- Industrial Parks
Can ENDOBOT inspect sewer and stormwater drain networks?
Yes. ENDOBOT is specifically designed for sewer pipelines, stormwater drains, and wastewater networks, helping identify blockages, structural defects, sediment accumulation, and flow issues.
How accurate is robotic pipeline defect detection?
ENDOBOT combines HD imaging, laser profiling, and AI-powered analytics to provide highly accurate defect identification and condition assessment reports.
